Installatiekabel

TECK 90 600V CSA, versatile power and control cable. In Canada, teck cable is defined by CSA standard C22.2 No. 131 and carries the type designation of TECK90. 90 refers to the normal ambient temperature in degrees Celsius that the cable may be used in without de-rating its ampacity.

Flame retardant XLPE insulated 600V aluminum interlocked armoured PVC sheated cable, rated HL. Control cable in sizes AWG 14-10, power cable in sizes AWG 8- 500MCM available.

For exposed or concealed wiring in wet or dry locations. For use in ventilated, non-ventilated and ladder type cable troughs and ventilated flexible cableway in  wet, dry or hazardous locations. Sunlight Resistant. Typical applications are for control lighting and power circuits in pulp and paper mills, steel mills, food processing plants, commercial centers, mines, generating stations, refineries, industrial plants and chemical plants.

TECK 90 Product Approvals
Qualification Standards	CSA C22.2 No. 131 - Type TECK 90 Cable - File Listing: LL90458
	CSA C22.2 No. 174 - Cables in Hazardous Locations
	CSA C22.2 No. 0.3. - Wire and Cable Test Methods
	CSA File Listing: LL90458
Flame Test Compliance	FT4 - Flame Test (70,000 BTU/Hr - Vertical Tray Flame Test)
	IEEE 383 - Flame Test (70,000 BTU/Hr)
Product Ratings	CSA C22.2 No. 0.3. - Wire and Cable Test Methods
	CSA HL - for Hazardous Locations rating
	CSA FT4 - for Flame Retardancy rating
	CSA SUN RES - for Sunlight Resistant rating
	CSA AG14 - for Acid Gas Compliance

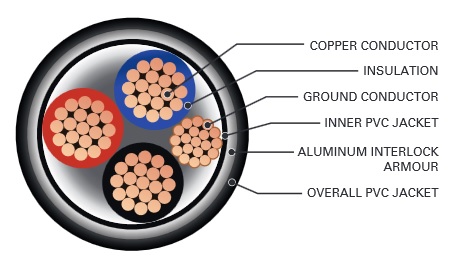

TECK 90 Cable Construction
Conductor	class B stranded copper
Insulation	cross-linked polyethylene (XLPE)
Color code	2/C black, white
	3/C red, black, blue
	4/C red, black, blue, white
	for 5/C cables or more: insulation black and numbered
Grounding Conductors	Uninsulated Class B stranded grounding conductor
Assembly	Multiple conductor cables assembled with suitable fillers and binder tape
Inner Jacket	polyvinylchloride (PVC)
Armour	aluminium interlocked armour (AIA)
Overall Jacket	black PVC

Technical Features
Voltage	600V
Operating Temperatures	-40°C - CSA cold bend and impact temperature
	-40°C - min. installation temperature
	90°C - max. continuous operating temperature
Available sizes control cable	AWG14: 2-30 conductors
	AWG12: 2-30 conductors
	AWG10: 2-30 conductors
Available sizes power cable	AWG 8 - 4/0: 3 or 4 conductors
	MCM 250 - 500: 3 or 4 conductors
